Vertical Glass Washing Machine

Product Details

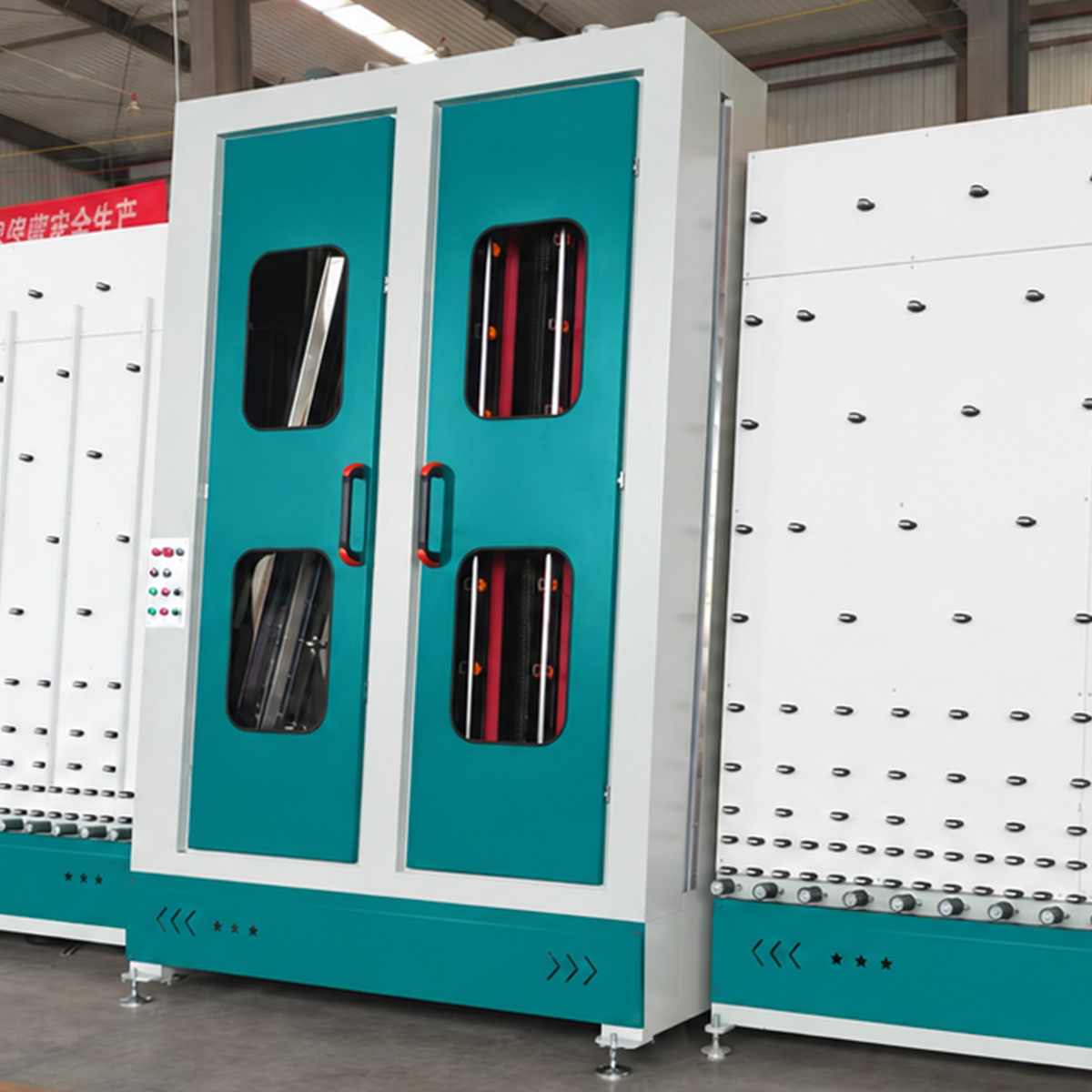

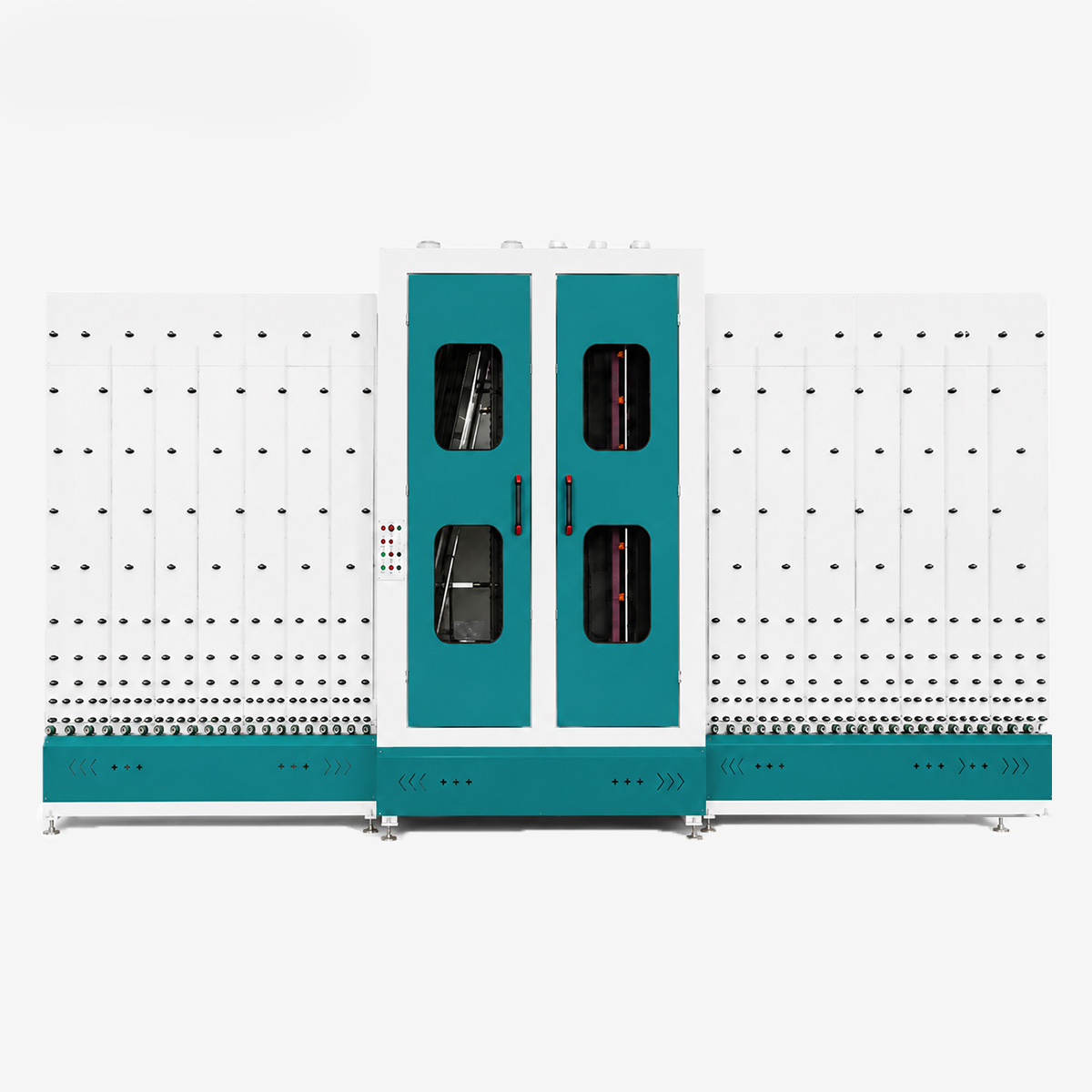

The LB2500 Vertical Glass Washing Machine integrates glass conveying, washing, drying and inspection into one machine. It is suitable for flat glass used in insulating glass production and other glass processing applications.

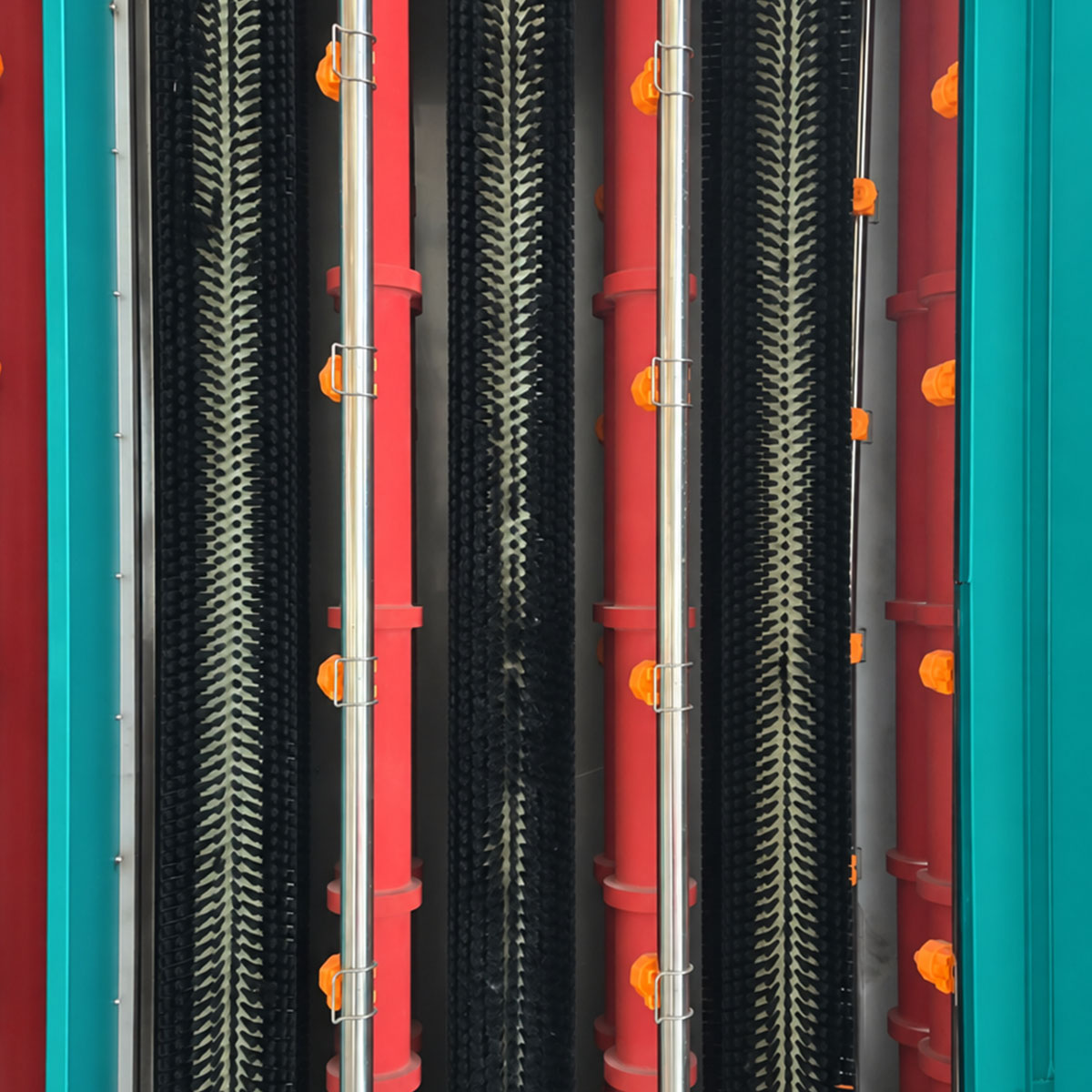

The washing section uses stainless steel brush shafts with nylon bristles. The brush system can be used for coated Low-E glass when the cleaning parameters match the glass supplier’s requirements.

The water tank is equipped with a heating system. In cold workshop conditions, water heating is recommended when the ambient temperature is below 7°C.

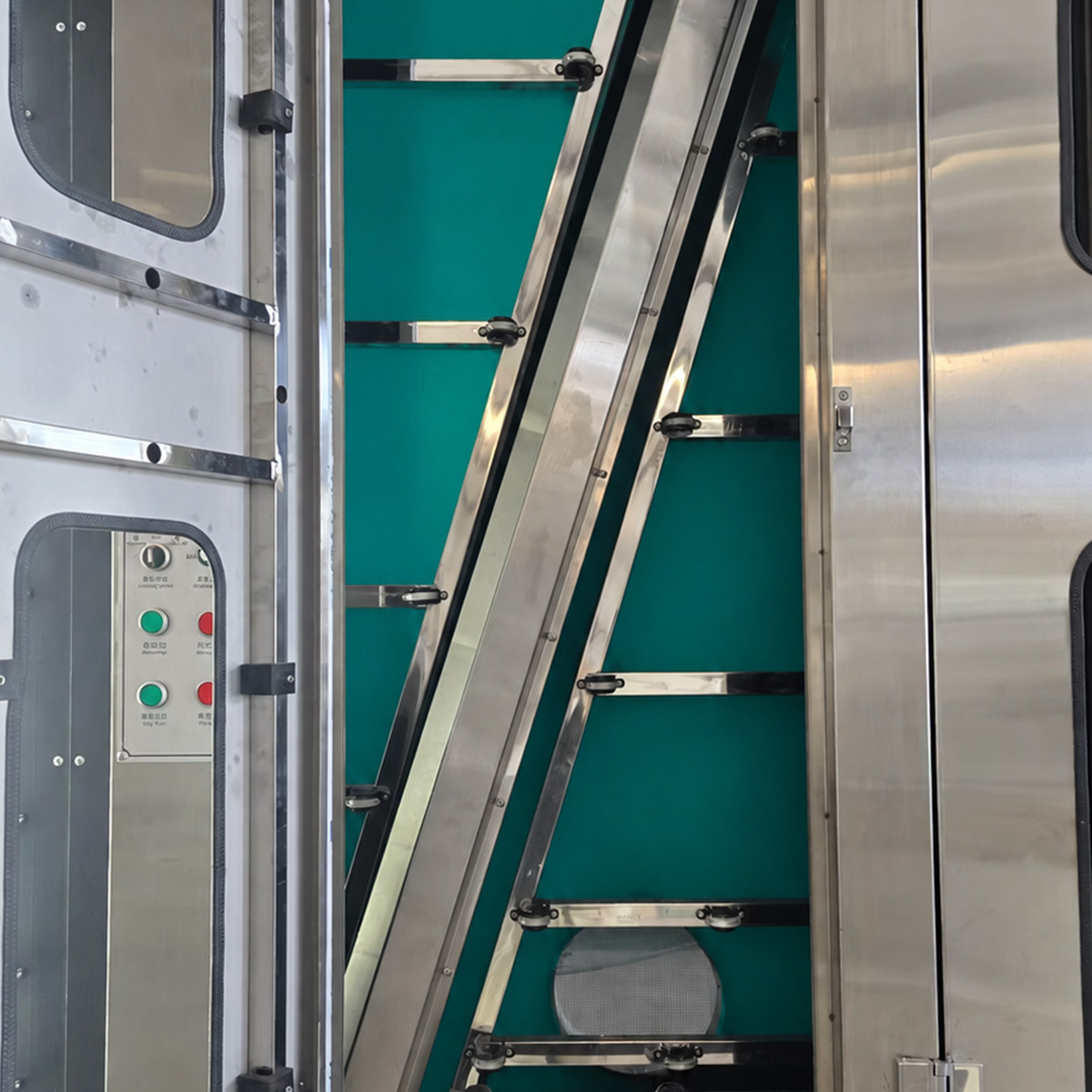

The drying section uses stainless steel air ducts, high-pressure fans and heated air. The optimized air duct design provides strong airflow while reducing operating noise. Stainless steel conveying rollers inside the drying box help prevent the washed glass from contacting contaminated surfaces.

The glass conveying system uses variable frequency control. Operators can adjust the conveying speed according to the glass type, production condition and downstream equipment.

Standard Technical Specifications

• Model: LB2500 Vertical Glass Washing Machine

• Power supply: 380V, 50Hz

• Total power: 25 kW

• Minimum processing size: 300 × 400 mm

• Adjustable conveying speed: 0–6 m/min

• Processing type: Flat glass

• Structure: Vertical tilting glass washing machine

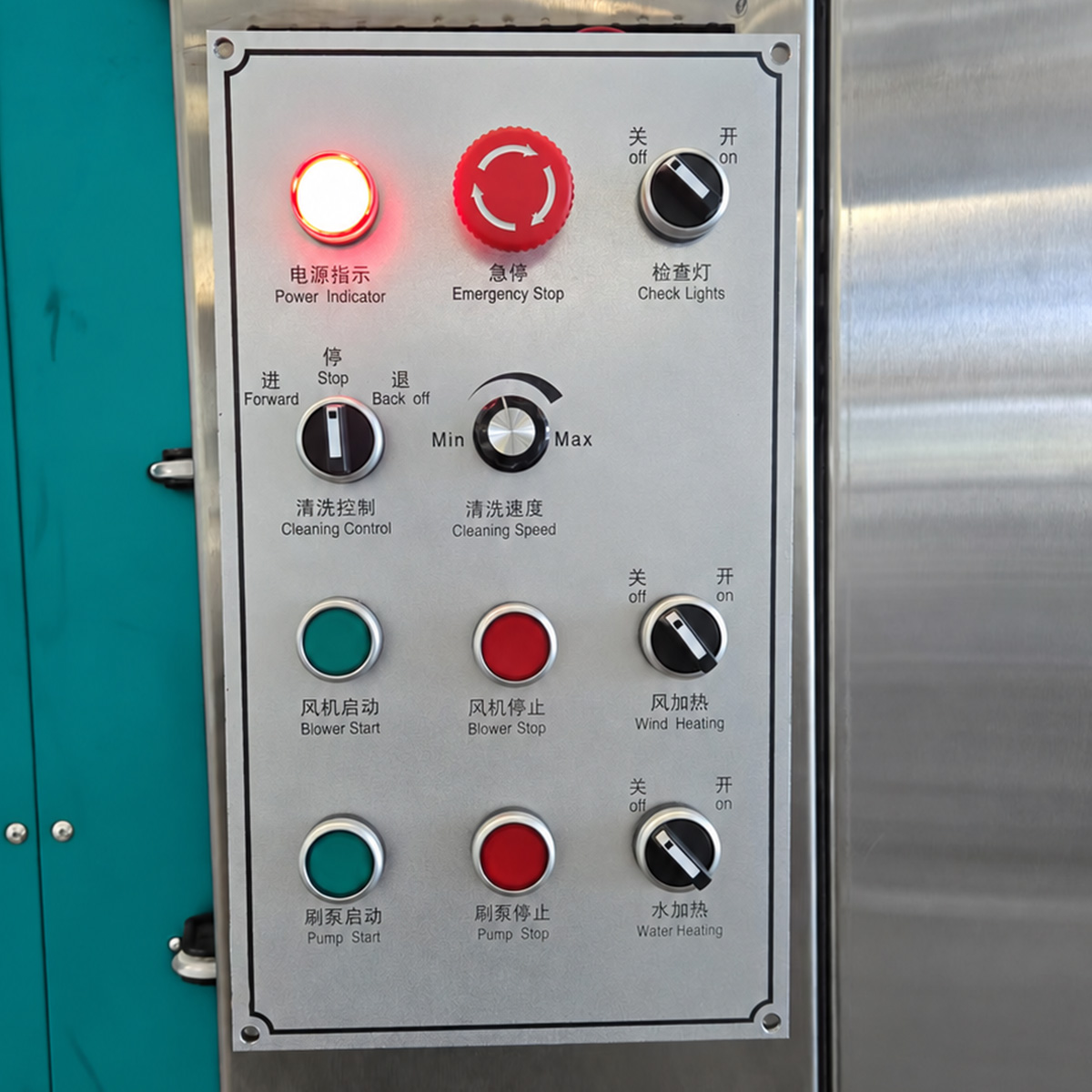

• Control method: Centralized control panel with variable frequency drive

Version 1: LB2500-3500

• Maximum processing size: 3500 × 2500 mm

• Overall dimension: 9100 × 2000 × 3600 mm

• Total weight: 2500 kg

• Feeding section: 3000 × 1000 × 3100 mm

• Main washing section: 2400 × 1500 × 3600 mm

• Discharging section: 3600 × 1000 × 3100 mm

• Fan dimension: 1400 × 1100 × 2400 mm

• Water tank dimension: 1500 × 600 × 3300 mm

Version 2: LB2500-3000

• Maximum processing size: 3000 × 2500 mm

• Overall dimension: 7600 × 2000 × 3600 mm

• Total weight: 2300 kg

• Feeding section: 2500 × 1000 × 3100 mm

• Main washing section: 1900 × 1500 × 3600 mm

• Discharging section: 3100 × 1000 × 3100 mm

• Fan dimension: 1400 × 1100 × 2400 mm

• Water tank dimension: 1500 × 600 × 3300 mm

Main Working Process

1. Glass is placed in the feeding section.

2. The conveying system transfers the glass into the washing chamber.

3. Adjustable water sprays and brush rollers clean the glass surface.

4. Heated air and high-pressure fans remove water from the glass.

5. The operator checks the cleaned glass before it moves to the next production stage.

Suitable Applications

The LB2500 Vertical Glass Washing Machine can be used for:

• Insulating glass production lines

• Double glazing and triple glazing production

• Low-E glass cleaning

• Flat glass processing factories

• Glass door and window production

• Architectural glass processing

• Glass factories requiring vertical washing and drying

The final configuration should be confirmed according to the customer’s glass size, glass thickness, Low-E glass percentage, water supply, workshop space and downstream production equipment.

Contact JINJIYE for the current configuration, technical proposal and installation requirements.
