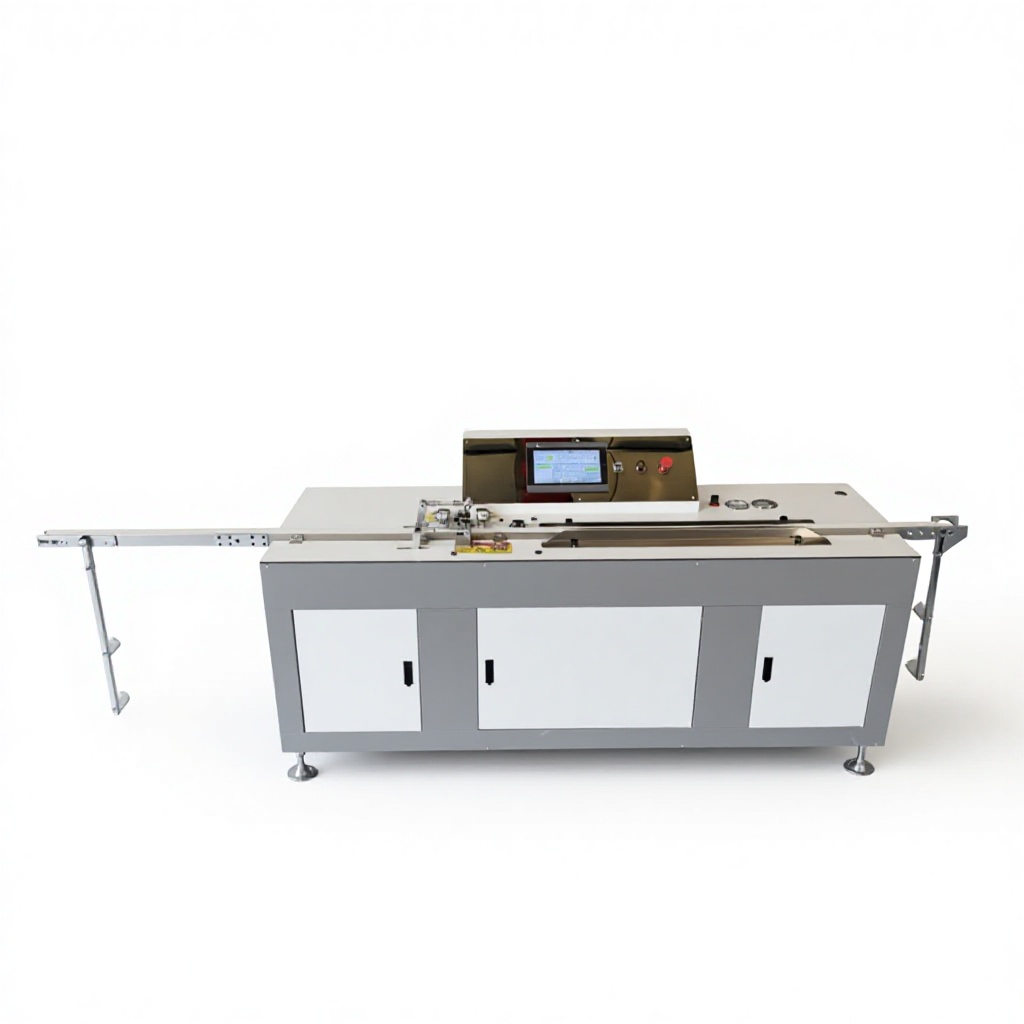

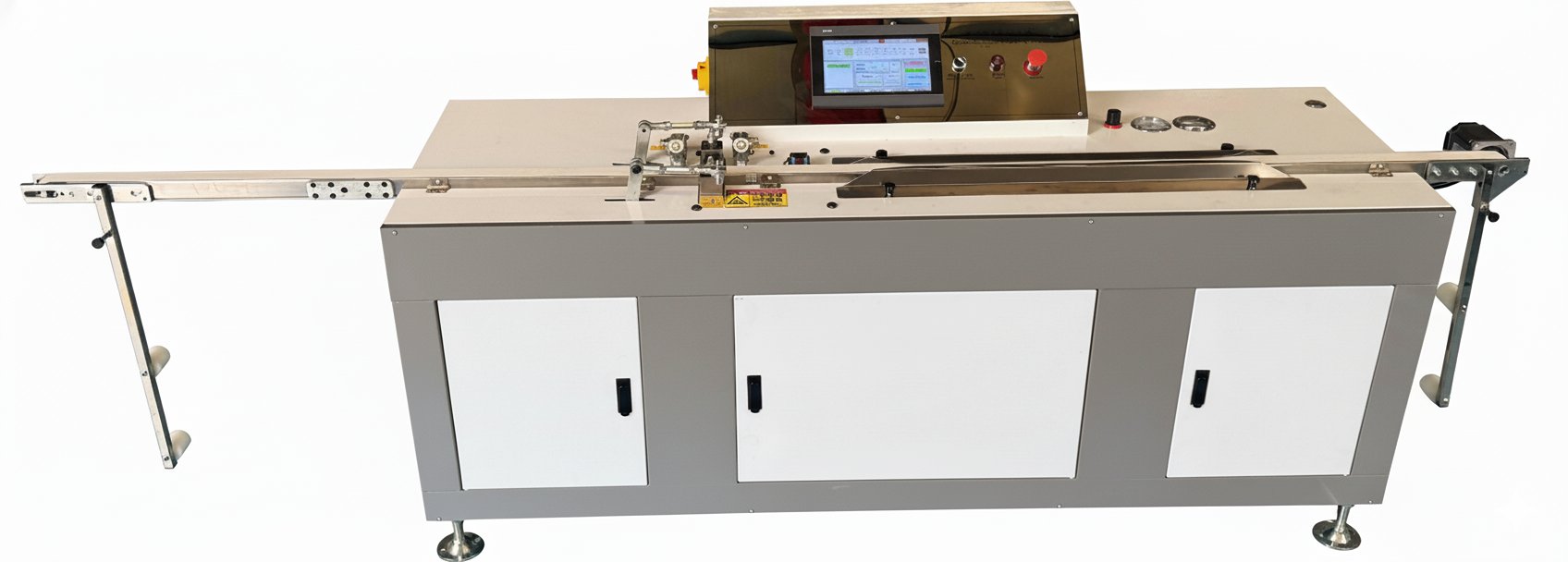

Automatic Sealant Coating Machine For IG Glass Production Line
1. Advanced & Intuitive Control: Features an air-liquid booster pump, touchscreen interface, 5-speed transmission, and auto-width adjustment for effortless operation.
2. High Stability (≥500h): Servo-driven precision ensures continuous, fault-free operation for over 500 hours.
3. Smart & Flexible Modes: Seamlessly switch between full-auto, semi-auto, and manual modes to suit any operator's skill level.
4. Eco-Friendly & Cost-Saving: Maximizes adhesive utilization to ≥98% while cutting energy consumption by 15%.
5. Customizable Upgrades: Optional add-ons like CCD vision positioning, auto-cutting, and multi-station modules for complex production needs.
1. Product Description
As a vital component of any high-quality Insulated Glass Unit (IGU) production setup, this Butyl Coating Machine is engineered to deliver a flawless, even layer of butyl sealant across both sides of aluminum spacers. By doing so, Butyl Coating Machine creates an impenetrable moisture barrier that guarantees the longevity of the double glazing. Built with highly accurate temperature regulation, customizable operation speeds, and reliable extrusion dynamics, it is the perfect fit for glass processing facilities, whether large or small.

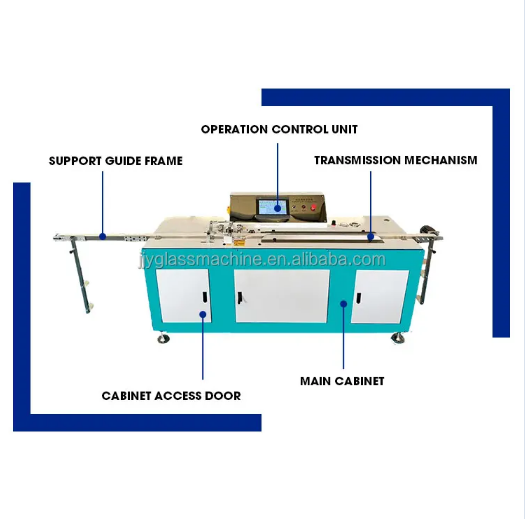

2. Product Details

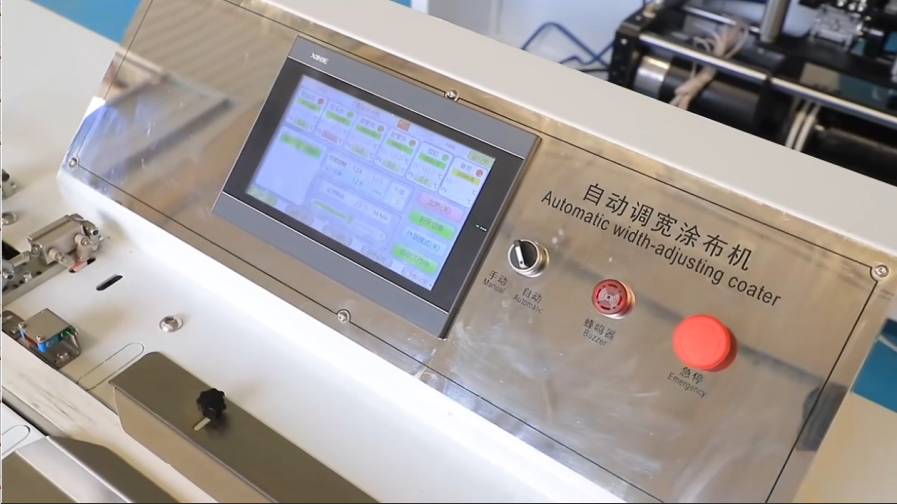

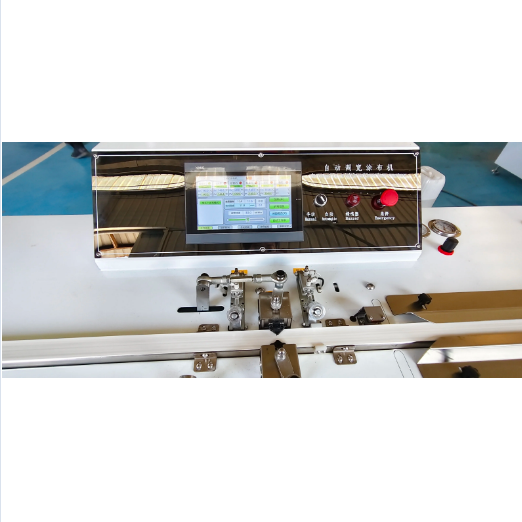

Integrated with a cutting-edge air-liquid booster pump and an intuitive touch interface, the system transforms complex processes into straightforward, highly efficient tasks.
Designed for maximum flexibility, it offers seamless switching between fully automatic, semi-automatic, and manual settings, allowing operators of all skill levels to master it quickly.
Driven by a robust servo motor and a highly accurate transmission mechanism, the equipment guarantees over 500 hours of continuous, uninterrupted, and fault-free performance.
3. Technical Specifications
| Item | Specification |
| Power Supply | 380V / 50Hz (3-Phase) |
| Heating Temperature | 110°C – 180°C |
| Coating Speed | 0 – 30 m/min (Fully Adjustable) |
| Applicable Spacer Width | 6 – 27 mm (Custom Sizes Available) |
| Glue Tank Capacity | Built to Customer Requirements |
| Dimensions | Dependent on Specific Model |
| Machine Weight | Dependent on Specific Model |
4. Working Process
Warm up the butyl reservoir to the designated operational temperature.
Position the aluminum spacer securely onto the tracking guide system.
Initiate the equipment to dispense a consistent and smooth layer of sealant.
Transfer the coated spacer forward for the subsequent IGU assembly phase.
5. Application
Facilities manufacturing Insulated Glass Units (IGU)
Production lines for architectural and structural glass
Glass fabrication for premium doors and windows
Processing centers for curtain wall systems
Assembly of energy-efficient Low-E glass panels
6. Why Choose Our Butyl Sealant Extruder?
Direct from the manufacturer, ensuring consistent quality and competitive value.
We provide end-to-end machinery solutions for complete IGU manufacturing lines.
A proven track record of successful machinery exports to more than 60 nations globally.
Dedicated, expert technical assistance available online whenever you need it.
Constructed with heavy-duty components to guarantee exceptional durability and an extended lifespan.
7. Packing & Shipping
Encased in rugged, export-grade wooden crating.
Fully secured with advanced moisture-proof and shock-absorbent materials.
Flexible global logistics options including ocean, air, and railway freight.
8. After-Sales Service
Comprehensive 12-month warranty covering all primary parts.
Round-the-clock online troubleshooting and technical guidance.
Step-by-step video tutorials provided for both installation and daily operation.
On-site international engineering support available upon request.
